# 最终效果

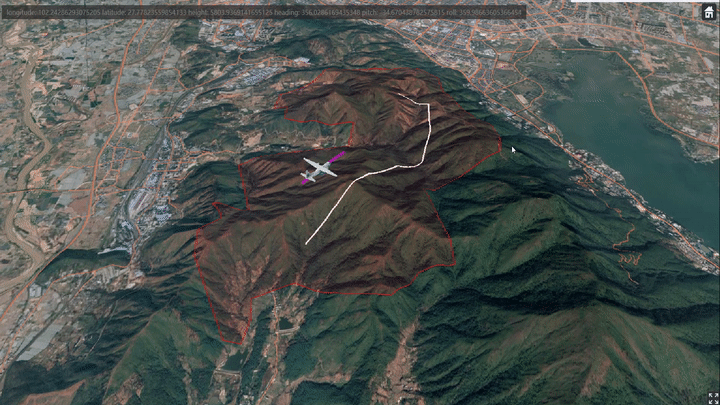

话不多说，先上效果
# 相关知识点
主要用到 CZML 相关知识
CZML 是一种用来描述动态场景的 JSON 架构的语言，主要用于 Cesium 在浏览器中的展示。它可以用来描述点、线、布告板、模型以及其他的图元，同时定义他们是怎样随时间变化的。
详情可看：CZML 介绍
我这里就不过多赘述了。
# 主要代码
var czml = [ | |
{ | |
id: "document", | |
name: "CZML Path", | |
version: "1.0", | |
clock: { | |
interval: "2020-09-30T10:00:00Z/2020-09-30T10:01:20Z", | |
currentTime: "2012-08-04T10:00:00Z", | |
multiplier: 10, | |
}, | |
}, | |
{ | |
id: "path", | |
name: "path with GPS flight data", | |
description: "Created by wangyu", | |
availability: "2020-09-30T10:00:00Z/2020-09-30T10:01:20Z", | |
path: { | |
material: { | |
polylineOutline: { | |
color: { | |
rgba: [255, 0, 255, 127], | |
}, | |
outlineColor: { | |
rgba: [255, 0, 255, 127], | |
}, | |
outlineWidth: 3, | |
}, | |
}, | |
width: 5, | |
leadTime: 10, | |
trailTime: 1000, | |
resolution: 5, | |
}, | |
model: { | |
gltf: "Assets/SampleData/models/CesiumAir/Cesium_Air.glb", | |
scale: 2.0, | |
minimumPixelSize: 128, | |
}, | |
position: { | |
epoch: "2020-09-30T10:00:00Z", | |
cartographicDegrees: [ | |
0, 102.23404378554466, 27.825736605050523, 2500, | |
10, 102.23691954070244, 27.82887625908256, 2500, | |
20, 102.23908610745147, 27.830920963237897, 2500, | |
30, 102.24222708893987, 27.834251845778994, 2500, | |
40, 102.24483684219396, 27.837156939755058, 2500, | |
50, 102.24821756517042, 27.838973119832243, 2500, | |
60, 102.2497304631213, 27.843805668815058, 2500, | |
70, 102.25017946873977, 27.849726810753346, 2500, | |
80, 102.24597936406548, 27.852179959795592, 2500 | |
], | |
}, | |
}, | |
]; | |
var airModel; | |
viewer.dataSources.add(Cesium.CzmlDataSource.load(czml)).then(function (ds) { | |
airModel = ds.entities.getById("path"); | |
// 设置模型可以随路径方向转向 | |
airModel.orientation = new Cesium.VelocityOrientationProperty(airModel.position); | |
airModel.model.alignedAxis = new Cesium.VelocityVectorProperty(airModel.position, true) | |
}); |
