# Logistic Regression

# Q1 why not maximize accuracy?

$acc.=\frac{\sum I\left(pred_{i}==y_{i}\right)}{len\left(Y\right)}$

如果最小化 accuracy，会造成 gradient = 0 的现象。因为用 sigmoid 做激活函数，小于 0.5 判断为 0，大于 0.5 判断为 1，如果参数 w 从 0.4 提升到 0.45，但因为还是小于 0.5，所以预测的类别没有发生变化，accuracy 也没有变，导致梯度不就为 0 嘛。

会造成梯度不连续的现象。还是刚才的例子，如果 w 从 0.499 变到 0.501，只有微小的提升，但是预测的类别就发生了变化，导致 accuracy 突变。也就造成了刚刚梯度都还是 0，但这次就突然变了很大的一个值，就是这种梯度不连续的现象。

所以在分类问题上，不会用 accuracy 作为优化目标。

# Q2 why call logistic regression

因为用了 sigmoid 激活函数，所以称它为 logistic

如果使用 MSE 损失函数，则可以称之为 regression，因为 MSE 就是想将比如 P (0.7) 逼近 P (1)，所以可以称之为 regression

而如果用 CrossEntropy 作为损失函数，则应该称为 classification

# Cross Entropy

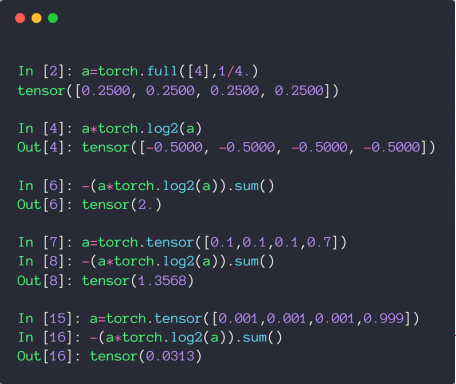

# Entropy

$Entropy=-\sum_{i}P\left(i\right)\log P\left(i\right)$

# CrossEntropy

p 定义为真实分布，q 是模型学习到的分布，则 CrossEntropy 的定义如下

\begin{align*}H\left(p,q\right)&=-\sum p\left(x\right)\log q\left(x\right)\\[10 pt] &=H\left(p\right)+D_{KL}\left(p\left|q\right.\right)\end{align*}

KL 散度，用来衡量两个分布间的差异，详情：Kullback-Leibler (KL) 散度介绍

当 q = p，即完全学习到了真实分布时，CrossEntropy = Entropy

对于分类问题，通常使用 one-hot 编码，这种情况下，真实分布 p 就类似 [1, 0, 0, 0] 这种，H (p) 的值就是 entropy = 1log1 = 0，所以对于分类问题，CrossEntropy 就等于用 KL 散度来衡量分布间的差异

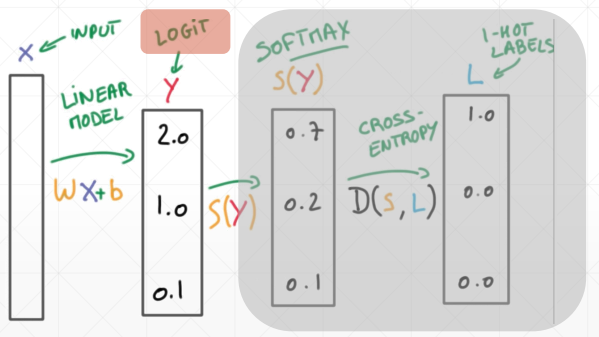

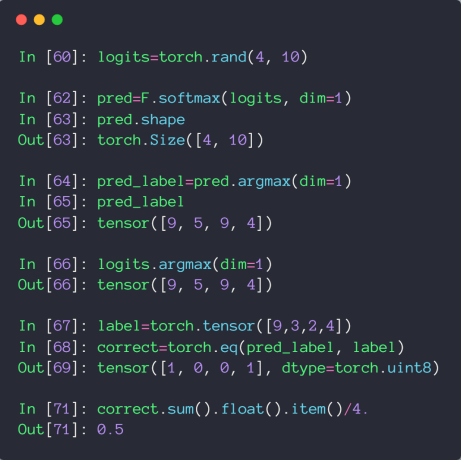

通常情况下，将没有经过激活函数的输出称为 Logits，如下

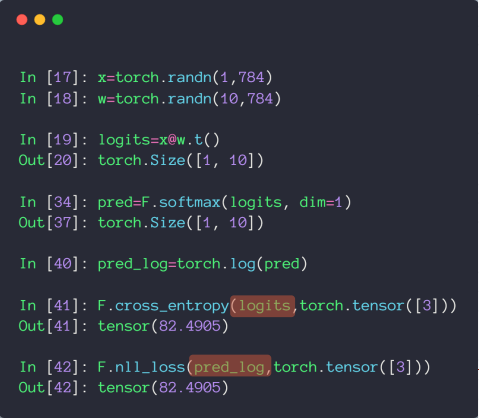

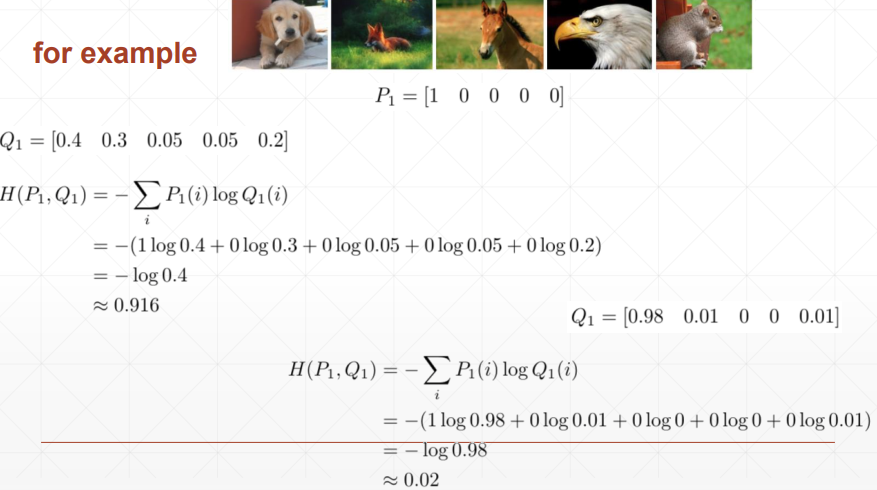

# 案例

注意，在 pytorch 中，cross_entropy 就等于 softmax + log + nll_loss，所以对于 logits，直接扔到 cross_entropy 中就行

‍# 全连接网络多分类小实战

# 底层 API 版

	import torch
	import torch.nn as nn
	import torch.nn.functional as F
	import torch.optim as optim
	from torchvision import datasets, transforms

	batch_size=200
	learning_rate=0.01
	epochs=10

	train_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=True, download=True,
	transform=transforms.Compose([
	transforms.ToTensor(),
	transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)
	test_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=False, transform=transforms.Compose([
	transforms.ToTensor(),
	transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)



	w1, b1 = torch.randn(200, 784, requires_grad=True),\
	torch.zeros(200, requires_grad=True)
	w2, b2 = torch.randn(200, 200, requires_grad=True),\
	torch.zeros(200, requires_grad=True)
	w3, b3 = torch.randn(10, 200, requires_grad=True),\
	torch.zeros(10, requires_grad=True)

	torch.nn.init.kaiming_normal_(w1)
	torch.nn.init.kaiming_normal_(w2)
	torch.nn.init.kaiming_normal_(w3)

	def forward(x):
	x = x@w1.t() + b1
	x = F.relu(x)
	x = x@w2.t() + b2
	x = F.relu(x)
	x = x@w3.t() + b3
	x = F.relu(x)
	return x

	optimizer = optim.SGD([w1, b1, w2, b2, w3, b3], lr=learning_rate)
	criteon = nn.CrossEntropyLoss()

	for epoch in range(epochs):

	for batch_idx, (data, target) in enumerate(train_loader):
	data = data.view(-1, 28*28)

	logits = forward(data)
	loss = criteon(logits, target)

	optimizer.zero_grad()
	loss.backward()
	# print(w1.grad.norm(), w2.grad.norm())
	optimizer.step()

	if batch_idx % 100 == 0:
	print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
	epoch, batch_idx * len(data), len(train_loader.dataset),
	100. * batch_idx / len(train_loader), loss.item()))


	test_loss = 0
	correct = 0
	for data, target in test_loader:
	data = data.view(-1, 28 * 28)
	logits = forward(data)
	test_loss += criteon(logits, target).item()

	pred = logits.data.max(1)[1]
	correct += pred.eq(target.data).sum()

	test_loss /= len(test_loader.dataset)
	print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
	test_loss, correct, len(test_loader.dataset),
	100. * correct / len(test_loader.dataset)))

# 高阶 API 版

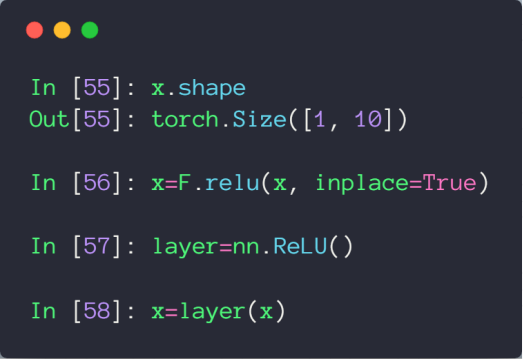

# nn.ReLU 和 F.relu () 的区别

前者是类风格的 API，后者是函数风格的 API

类风格的要创建实例，然后扔进去。函数风格的可以直接调用

	import torch
	import torch.nn as nn
	import torch.nn.functional as F
	import torch.optim as optim
	from torchvision import datasets, transforms

	batch_size=200
	learning_rate=0.01
	epochs=10

	train_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=True, download=True,
	transform=transforms.Compose([
	transforms.ToTensor(),
	transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)
	test_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=False, transform=transforms.Compose([
	transforms.ToTensor(),
	transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)

	class MLP(nn.Module):

	def __init__(self):
	super(MLP, self).__init__()

	self.model = nn.Sequential(
	nn.Linear(784, 200),
	nn.ReLU(inplace=True),
	nn.Linear(200, 200),
	nn.ReLU(inplace=True),
	nn.Linear(200, 10),
	nn.ReLU(inplace=True),
	)

	def forward(self, x):
	x = self.model(x)

	return x

	net = MLP()
	optimizer = optim.SGD(net.parameters(), lr=learning_rate)
	criteon = nn.CrossEntropyLoss()

	for epoch in range(epochs):

	for batch_idx, (data, target) in enumerate(train_loader):
	data = data.view(-1, 28*28)

	logits = net(data)
	loss = criteon(logits, target)

	optimizer.zero_grad()
	loss.backward()
	# print(w1.grad.norm(), w2.grad.norm())
	optimizer.step()

	if batch_idx % 100 == 0:
	print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
	epoch, batch_idx * len(data), len(train_loader.dataset),
	100. * batch_idx / len(train_loader), loss.item()))

	test_loss = 0
	correct = 0
	for data, target in test_loader:
	data = data.view(-1, 28 * 28)
	logits = net(data)
	test_loss += criteon(logits, target).item()

	pred = logits.data.max(1)[1]
	correct += pred.eq(target.data).sum()

	test_loss /= len(test_loader.dataset)
	print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
	test_loss, correct, len(test_loader.dataset),
	100. * correct / len(test_loader.dataset)))

# 激活函数补充

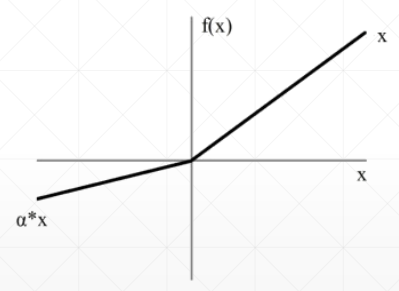

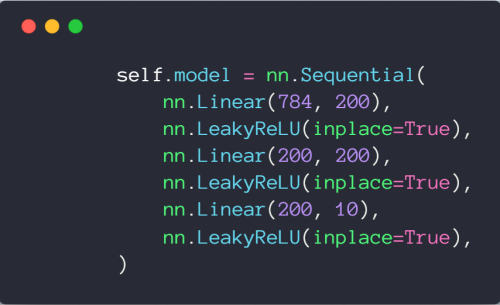

# Leaky ReLU

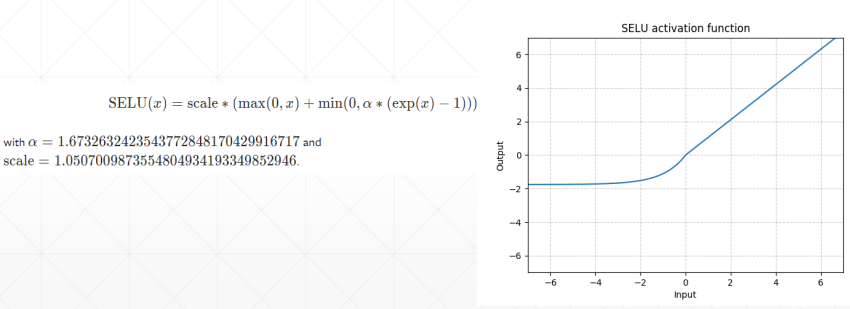

# SELU

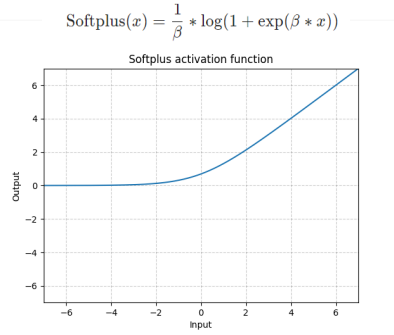

# Softplus

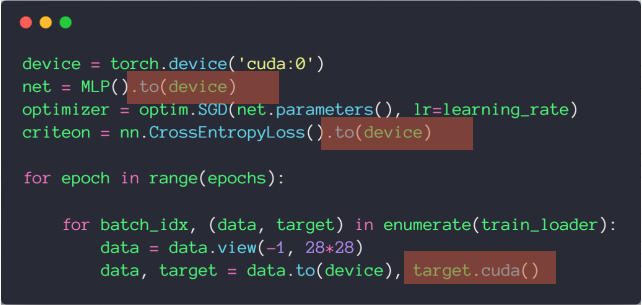

# GPU 加速

使用 cuda 会造成硬编码，所以推荐使用 to(device)

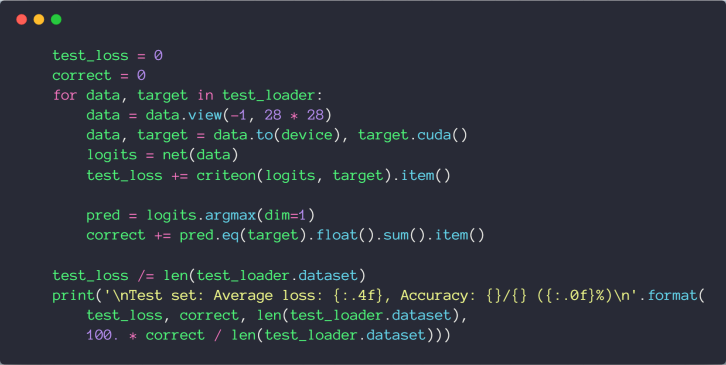

# MNIST 实战

	import torch
	import torch.nn as nn
	import torch.nn.functional as F
	import torch.optim as optim
	from torchvision import datasets, transforms

	batch_size=200
	learning_rate=0.01
	epochs=10

	train_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=True, download=True,
	transform=transforms.Compose([
	transforms.ToTensor(),
	transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)
	test_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=False, transform=transforms.Compose([
	transforms.ToTensor(),
	transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)

	class MLP(nn.Module):

	def __init__(self):
	super(MLP, self).__init__()

	self.model = nn.Sequential(
	nn.Linear(784, 200),
	nn.LeakyReLU(inplace=True),
	nn.Linear(200, 200),
	nn.LeakyReLU(inplace=True),
	nn.Linear(200, 10),
	nn.LeakyReLU(inplace=True),
	)

	def forward(self, x):
	x = self.model(x)

	return x

	device = torch.device('cuda:0')
	net = MLP().to(device)
	optimizer = optim.SGD(net.parameters(), lr=learning_rate)
	criteon = nn.CrossEntropyLoss().to(device)

	for epoch in range(epochs):

	for batch_idx, (data, target) in enumerate(train_loader):
	data = data.view(-1, 28*28)
	data, target = data.to(device), target.cuda()

	logits = net(data)
	loss = criteon(logits, target)

	optimizer.zero_grad()
	loss.backward()
	# print(w1.grad.norm(), w2.grad.norm())
	optimizer.step()

	if batch_idx % 100 == 0:
	print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
	epoch, batch_idx * len(data), len(train_loader.dataset),
	100. * batch_idx / len(train_loader), loss.item()))


	test_loss = 0
	correct = 0
	for data, target in test_loader:
	data = data.view(-1, 28 * 28)
	data, target = data.to(device), target.cuda()
	logits = net(data)
	test_loss += criteon(logits, target).item()

	pred = logits.argmax(dim=1)
	correct += pred.eq(target).float().sum().item()

	test_loss /= len(test_loader.dataset)
	print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
	test_loss, correct, len(test_loader.dataset),
	100. * correct / len(test_loader.dataset)))

# Visdom 可视化

# 安装及运行

安装 pip install visdom

启动服务 python -m visdom.server

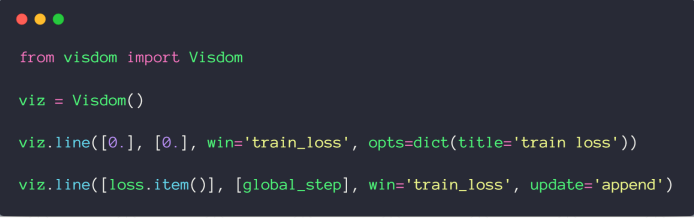

# 绘制单条曲线

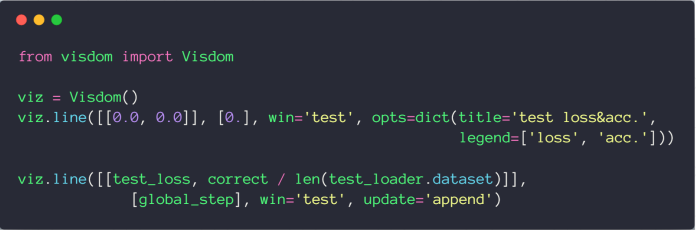

# 绘制多条曲线

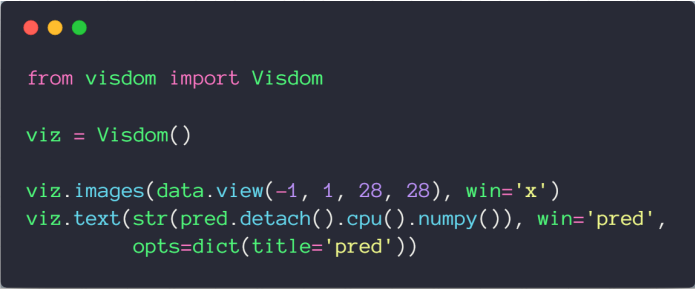

# 绘制图片和文本

	import torch
	import torch.nn as nn
	import torch.nn.functional as F
	import torch.optim as optim
	from torchvision import datasets, transforms

	from visdom import Visdom

	batch_size=200
	learning_rate=0.01
	epochs=10

	train_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=True, download=True,
	transform=transforms.Compose([
	transforms.ToTensor(),
	# transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)
	test_loader = torch.utils.data.DataLoader(
	datasets.MNIST('../data', train=False, transform=transforms.Compose([
	transforms.ToTensor(),
	# transforms.Normalize((0.1307,), (0.3081,))
	])),
	batch_size=batch_size, shuffle=True)

	class MLP(nn.Module):

	def __init__(self):
	super(MLP, self).__init__()

	self.model = nn.Sequential(
	nn.Linear(784, 200),
	nn.LeakyReLU(inplace=True),
	nn.Linear(200, 200),
	nn.LeakyReLU(inplace=True),
	nn.Linear(200, 10),
	nn.LeakyReLU(inplace=True),
	)

	def forward(self, x):
	x = self.model(x)

	return x

	device = torch.device('cuda:0')
	net = MLP().to(device)
	optimizer = optim.SGD(net.parameters(), lr=learning_rate)
	criteon = nn.CrossEntropyLoss().to(device)

	viz = Visdom()

	viz.line([0.], [0.], win='train_loss', opts=dict(title='train loss'))
	viz.line([[0.0, 0.0]], [0.], win='test', opts=dict(title='test loss&acc.',
	legend=['loss', 'acc.']))
	global_step = 0

	for epoch in range(epochs):

	for batch_idx, (data, target) in enumerate(train_loader):
	data = data.view(-1, 28*28)
	data, target = data.to(device), target.cuda()

	logits = net(data)
	loss = criteon(logits, target)

	optimizer.zero_grad()
	loss.backward()
	# print(w1.grad.norm(), w2.grad.norm())
	optimizer.step()

	global_step += 1
	viz.line([loss.item()], [global_step], win='train_loss', update='append')

	if batch_idx % 100 == 0:
	print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
	epoch, batch_idx * len(data), len(train_loader.dataset),
	100. * batch_idx / len(train_loader), loss.item()))


	test_loss = 0
	correct = 0
	for data, target in test_loader:
	data = data.view(-1, 28 * 28)
	data, target = data.to(device), target.cuda()
	logits = net(data)
	test_loss += criteon(logits, target).item()

	pred = logits.argmax(dim=1)
	correct += pred.eq(target).float().sum().item()

	viz.line([[test_loss, correct / len(test_loader.dataset)]],
	[global_step], win='test', update='append')
	viz.images(data.view(-1, 1, 28, 28), win='x')
	viz.text(str(pred.detach().cpu().numpy()), win='pred',
	opts=dict(title='pred'))

	test_loss /= len(test_loader.dataset)
	print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
	test_loss, correct, len(test_loader.dataset),
	100. * correct / len(test_loader.dataset)))
