PyTorch学习笔记（8）迁移学习实战

import  torch

import  os, glob

import  random, csv

from    torch.utils.data import Dataset, DataLoader

from    torchvision import transforms

from    PIL import Image

class Pokemon(Dataset):

    def __init__(self, root, resize, mode):

        super(Pokemon, self).__init__()

        self.root = root

        self.resize = resize

        self.name2label = {} # "sq...":0

        for name in sorted(os.listdir(os.path.join(root))):

            if not os.path.isdir(os.path.join(root, name)):

                continue

            self.name2label[name] = len(self.name2label.keys())

        # print(self.name2label)

        # image, label

        self.images, self.labels = self.load_csv('images.csv')

        if mode=='train': # 60%

            self.images = self.images[:int(0.6*len(self.images))]

            self.labels = self.labels[:int(0.6*len(self.labels))]

        elif mode=='val': # 20% = 60%->80%

            self.images = self.images[int(0.6*len(self.images)):int(0.8*len(self.images))]

            self.labels = self.labels[int(0.6*len(self.labels)):int(0.8*len(self.labels))]

        else: # 20% = 80%->100%

            self.images = self.images[int(0.8*len(self.images)):]

            self.labels = self.labels[int(0.8*len(self.labels)):]

    def load_csv(self, filename):

        if not os.path.exists(os.path.join(self.root, filename)):

            images = []

            for name in self.name2label.keys():

                # 'pokemon\\mewtwo\\00001.png

                images += glob.glob(os.path.join(self.root, name, '*.png'))

                images += glob.glob(os.path.join(self.root, name, '*.jpg'))

                images += glob.glob(os.path.join(self.root, name, '*.jpeg'))

            # 1167, 'pokemon\\bulbasaur\\00000000.png'

            print(len(images), images)

            random.shuffle(images)

            with open(os.path.join(self.root, filename), mode='w', newline='') as f:

                writer = csv.writer(f)

                for img in images: # 'pokemon\\bulbasaur\\00000000.png'

                    name = img.split(os.sep)[-2]

                    label = self.name2label[name]

                    # 'pokemon\\bulbasaur\\00000000.png', 0

                    writer.writerow([img, label])

                print('writen into csv file:', filename)

        # read from csv file

        images, labels = [], []

        with open(os.path.join(self.root, filename)) as f:

            reader = csv.reader(f)

            for row in reader:

                # 'pokemon\\bulbasaur\\00000000.png', 0

                img, label = row

                label = int(label)

                images.append(img)

                labels.append(label)

        assert len(images) == len(labels)

        return images, labels

    def __len__(self):

        return len(self.images)

    def denormalize(self, x_hat):

        mean = [0.485, 0.456, 0.406]

        std = [0.229, 0.224, 0.225]

        # x_hat = (x-mean)/std

        # x = x_hat*std = mean

        # x: [c, h, w]

        # mean: [3] => [3, 1, 1]

        mean = torch.tensor(mean).unsqueeze(1).unsqueeze(1)

        std = torch.tensor(std).unsqueeze(1).unsqueeze(1)

        # print(mean.shape, std.shape)

        x = x_hat * std + mean

        return x

    def __getitem__(self, idx):

        # idx~[0~len(images)]

        # self.images, self.labels

        # img: 'pokemon\\bulbasaur\\00000000.png'

        # label: 0

        img, label = self.images[idx], self.labels[idx]

        tf = transforms.Compose([

            lambda x:Image.open(x).convert('RGB'), # string path= > image data

            transforms.Resize((int(self.resize*1.25), int(self.resize*1.25))),

            transforms.RandomRotation(15),

            transforms.CenterCrop(self.resize),

            transforms.ToTensor(),

            transforms.Normalize(mean=[0.485, 0.456, 0.406],

                                 std=[0.229, 0.224, 0.225])

        ])

        img = tf(img)

        label = torch.tensor(label)

        return img, label

def main():

    import  visdom

    import  time

    import  torchvision

    viz = visdom.Visdom()

    # tf = transforms.Compose([

    #                 transforms.Resize((64,64)),

    #                 transforms.ToTensor(),

    # ])

    # db = torchvision.datasets.ImageFolder(root='pokemon', transform=tf)

    # loader = DataLoader(db, batch_size=32, shuffle=True)

    #

    # print(db.class_to_idx)

    #

    # for x,y in loader:

    #     viz.images(x, nrow=8, win='batch', opts=dict(title='batch'))

    #     viz.text(str(y.numpy()), win='label', opts=dict(title='batch-y'))

    #

    #     time.sleep(10)

    db = Pokemon('pokemon', 64, 'train')

    x,y = next(iter(db))

    print('sample:', x.shape, y.shape, y)

    viz.image(db.denormalize(x), win='sample_x', opts=dict(title='sample_x'))

    loader = DataLoader(db, batch_size=32, shuffle=True, num_workers=8)

    for x,y in loader:

        viz.images(db.denormalize(x), nrow=8, win='batch', opts=dict(title='batch'))

        viz.text(str(y.numpy()), win='label', opts=dict(title='batch-y'))

        time.sleep(10)

if __name__ == '__main__':

    main()

import  torch

from    torch import  nn

from    torch.nn import functional as F

class ResBlk(nn.Module):

    """

    resnet block

    """

    def __init__(self, ch_in, ch_out, stride=1):

        """

        :param ch_in:

        :param ch_out:

        """

        super(ResBlk, self).__init__()

        self.conv1 = nn.Conv2d(ch_in, ch_out, kernel_size=3, stride=stride, padding=1)

        self.bn1 = nn.BatchNorm2d(ch_out)

        self.conv2 = nn.Conv2d(ch_out, ch_out, kernel_size=3, stride=1, padding=1)

        self.bn2 = nn.BatchNorm2d(ch_out)

        self.extra = nn.Sequential()

        if ch_out != ch_in:

            # [b, ch_in, h, w] => [b, ch_out, h, w]

            self.extra = nn.Sequential(

                nn.Conv2d(ch_in, ch_out, kernel_size=1, stride=stride),

                nn.BatchNorm2d(ch_out)

            )

    def forward(self, x):

        """

        :param x: [b, ch, h, w]

        :return:

        """

        out = F.relu(self.bn1(self.conv1(x)))

        out = self.bn2(self.conv2(out))

        # short cut.

        # extra module: [b, ch_in, h, w] => [b, ch_out, h, w]

        # element-wise add:

        out = self.extra(x) + out

        out = F.relu(out)

        return out

class ResNet18(nn.Module):

    def __init__(self, num_class):

        super(ResNet18, self).__init__()

        self.conv1 = nn.Sequential(

            nn.Conv2d(3, 16, kernel_size=3, stride=3, padding=0),

            nn.BatchNorm2d(16)

        )

        # followed 4 blocks

        # [b, 16, h, w] => [b, 32, h ,w]

        self.blk1 = ResBlk(16, 32, stride=3)

        # [b, 32, h, w] => [b, 64, h, w]

        self.blk2 = ResBlk(32, 64, stride=3)

        # # [b, 64, h, w] => [b, 128, h, w]

        self.blk3 = ResBlk(64, 128, stride=2)

        # # [b, 128, h, w] => [b, 256, h, w]

        self.blk4 = ResBlk(128, 256, stride=2)

        # [b, 256, 7, 7]

        self.outlayer = nn.Linear(256*3*3, num_class)

    def forward(self, x):

        """

        :param x:

        :return:

        """

        x = F.relu(self.conv1(x))

        # [b, 64, h, w] => [b, 1024, h, w]

        x = self.blk1(x)

        x = self.blk2(x)

        x = self.blk3(x)

        x = self.blk4(x)

        # print(x.shape)

        x = x.view(x.size(0), -1)

        x = self.outlayer(x)

        return x

def main():

    blk = ResBlk(64, 128)

    tmp = torch.randn(2, 64, 224, 224)

    out = blk(tmp)

    print('block:', out.shape)

    model = ResNet18(5)

    tmp = torch.randn(2, 3, 224, 224)

    out = model(tmp)

    print('resnet:', out.shape)

    p = sum(map(lambda p:p.numel(), model.parameters()))

    print('parameters size:', p)

if __name__ == '__main__':

    main()

import  torch

from    torch import optim, nn

import  visdom

import  torchvision

from    torch.utils.data import DataLoader

from    pokemon import Pokemon

from    resnet import ResNet18

batchsz = 32

lr = 1e-3

epochs = 10

device = torch.device('cuda')

torch.manual_seed(1234)

train_db = Pokemon('pokemon', 224, mode='train')

val_db = Pokemon('pokemon', 224, mode='val')

test_db = Pokemon('pokemon', 224, mode='test')

train_loader = DataLoader(train_db, batch_size=batchsz, shuffle=True,

                          num_workers=4)

val_loader = DataLoader(val_db, batch_size=batchsz, num_workers=2)

test_loader = DataLoader(test_db, batch_size=batchsz, num_workers=2)

viz = visdom.Visdom()

def evalute(model, loader):

    model.eval()

    correct = 0

    total = len(loader.dataset)

    for x,y in loader:

        x,y = x.to(device), y.to(device)

        with torch.no_grad():

            logits = model(x)

            pred = logits.argmax(dim=1)

        correct += torch.eq(pred, y).sum().float().item()

    return correct / total

def main():

    model = ResNet18(5).to(device)

    optimizer = optim.Adam(model.parameters(), lr=lr)

    criteon = nn.CrossEntropyLoss()

    best_acc, best_epoch = 0, 0

    global_step = 0

    viz.line([0], [-1], win='loss', opts=dict(title='loss'))

    viz.line([0], [-1], win='val_acc', opts=dict(title='val_acc'))

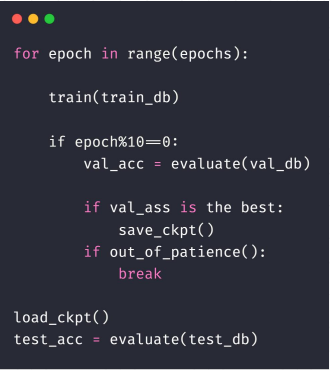

    for epoch in range(epochs):

        for step, (x,y) in enumerate(train_loader):

            # x: [b, 3, 224, 224], y: [b]

            x, y = x.to(device), y.to(device)

            model.train()

            logits = model(x)

            loss = criteon(logits, y)

            optimizer.zero_grad()

            loss.backward()

            optimizer.step()

            viz.line([loss.item()], [global_step], win='loss', update='append')

            global_step += 1

        if epoch % 1 == 0:

            val_acc = evalute(model, val_loader)

            if val_acc> best_acc:

                best_epoch = epoch

                best_acc = val_acc

                torch.save(model.state_dict(), 'best.mdl')

                viz.line([val_acc], [global_step], win='val_acc', update='append')

    print('best acc:', best_acc, 'best epoch:', best_epoch)

    model.load_state_dict(torch.load('best.mdl'))

    print('loaded from ckpt!')

    test_acc = evalute(model, test_loader)

    print('test acc:', test_acc)

if __name__ == '__main__':

    main()

import  torch

from    torch import optim, nn

import  visdom

import  torchvision

from    torch.utils.data import DataLoader

from    pokemon import Pokemon

# from    resnet import ResNet18

from    torchvision.models import resnet18

from    utils import Flatten

batchsz = 32

lr = 1e-3

epochs = 10

device = torch.device('cuda')

torch.manual_seed(1234)

train_db = Pokemon('pokemon', 224, mode='train')

val_db = Pokemon('pokemon', 224, mode='val')

test_db = Pokemon('pokemon', 224, mode='test')

train_loader = DataLoader(train_db, batch_size=batchsz, shuffle=True,

                          num_workers=4)

val_loader = DataLoader(val_db, batch_size=batchsz, num_workers=2)

test_loader = DataLoader(test_db, batch_size=batchsz, num_workers=2)

viz = visdom.Visdom()

def evalute(model, loader):

    model.eval()

    correct = 0

    total = len(loader.dataset)

    for x,y in loader:

        x,y = x.to(device), y.to(device)

        with torch.no_grad():

            logits = model(x)

            pred = logits.argmax(dim=1)

        correct += torch.eq(pred, y).sum().float().item()

    return correct / total

def main():

    # model = ResNet18(5).to(device)

    trained_model = resnet18(pretrained=True)

    model = nn.Sequential(*list(trained_model.children())[:-1], #[b, 512, 1, 1]

                          Flatten(), # [b, 512, 1, 1] => [b, 512]

                          nn.Linear(512, 5)

                          ).to(device)

    # x = torch.randn(2, 3, 224, 224)

    # print(model(x).shape)

    optimizer = optim.Adam(model.parameters(), lr=lr)

    criteon = nn.CrossEntropyLoss()

    best_acc, best_epoch = 0, 0

    global_step = 0

    viz.line([0], [-1], win='loss', opts=dict(title='loss'))

    viz.line([0], [-1], win='val_acc', opts=dict(title='val_acc'))

    for epoch in range(epochs):

        for step, (x,y) in enumerate(train_loader):

            # x: [b, 3, 224, 224], y: [b]

            x, y = x.to(device), y.to(device)

            model.train()

            logits = model(x)

            loss = criteon(logits, y)

            optimizer.zero_grad()

            loss.backward()

            optimizer.step()

            viz.line([loss.item()], [global_step], win='loss', update='append')

            global_step += 1

        if epoch % 1 == 0:

            val_acc = evalute(model, val_loader)

            if val_acc> best_acc:

                best_epoch = epoch

                best_acc = val_acc

                torch.save(model.state_dict(), 'best.mdl')

                viz.line([val_acc], [global_step], win='val_acc', update='append')

    print('best acc:', best_acc, 'best epoch:', best_epoch)

    model.load_state_dict(torch.load('best.mdl'))

    print('loaded from ckpt!')

    test_acc = evalute(model, test_loader)

    print('test acc:', test_acc)

if __name__ == '__main__':

    main()

from    matplotlib import pyplot as plt

import  torch

from    torch import nn

class Flatten(nn.Module):

    def __init__(self):

        super(Flatten, self).__init__()

    def forward(self, x):

        shape = torch.prod(torch.tensor(x.shape[1:])).item()

        return x.view(-1, shape)

def plot_image(img, label, name):

    fig = plt.figure()

    for i in range(6):

        plt.subplot(2, 3, i + 1)

        plt.tight_layout()

        plt.imshow(img[i][0]*0.3081+0.1307, cmap='gray', interpolation='none')

        plt.title("{}: {}".format(name, label[i].item()))

        plt.xticks([])

        plt.yticks([])

    plt.show()
