最为关键的点就在于 LSTM 有三个门，遗忘门（forget gate）、输入门（input gate）和输出门（output gate），每个门通过 sigmoid 激活函数（σ）输出 0 或者 1，然后通过 element-wise 的乘积操作，达到筛选信息的目的。

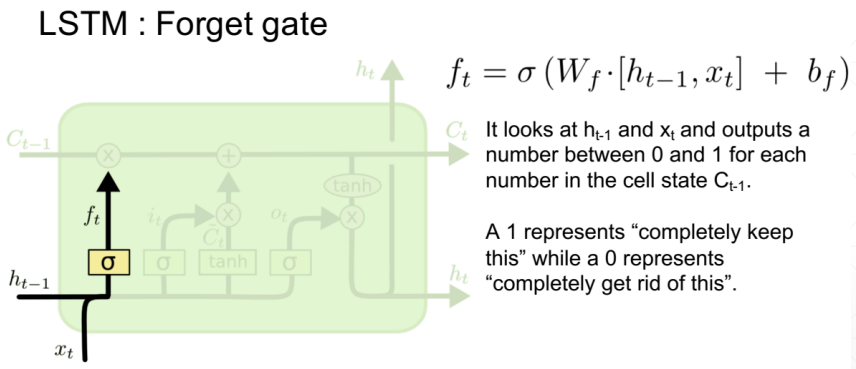

# 遗忘门

选择性的筛选上一步的记忆信息 $C_{t-1}$ ，所以叫做遗忘门

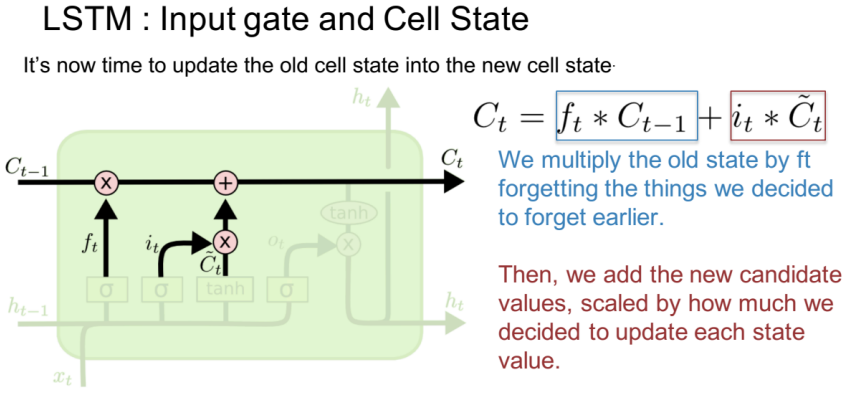

# 输入门

将 $h_{t-1}$ 和 $x_{t}$ 的经过 Sigmoid 激活函数得到输入门，同时， $h_{t-1}$ 和 $x_{t}$ 经过 tanh 激活函数得到新的记忆信息，然后和输入门经过 element-wise 的乘积操作，将输入进行选择性的筛选，所以叫做输入门

接下来就是更新上一步的记忆信息 $C_{t-1}$ ，通过 element-wise 的相加操作

从这里也可以看出输入门和输出门的状态组合会导致不同的结果

input gate	forget gate	behavior
0	1	remember the previous value
1	1	add to the previous value
0	0	erase the value
1	0	overwrite the value

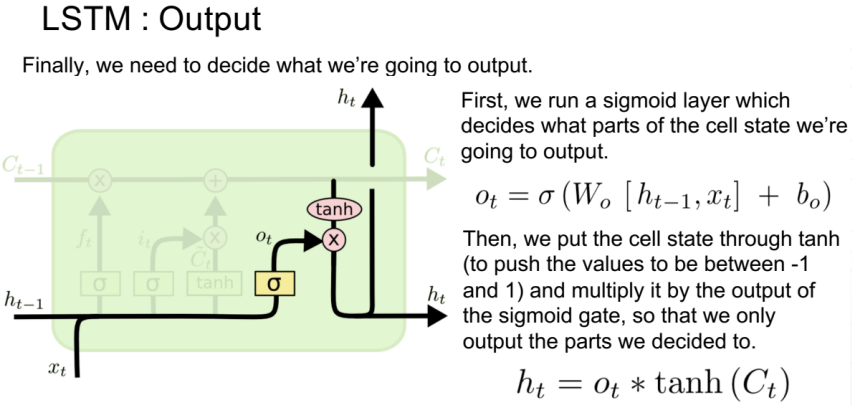

# 输出门

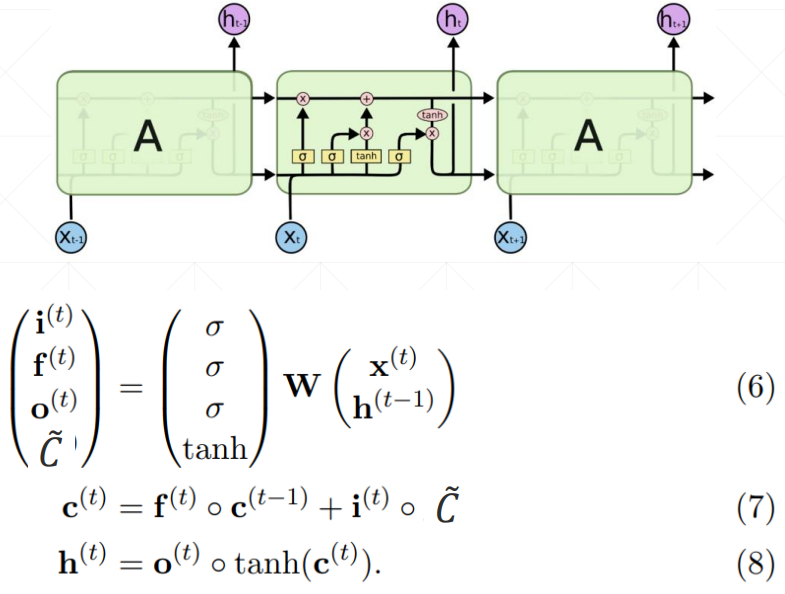

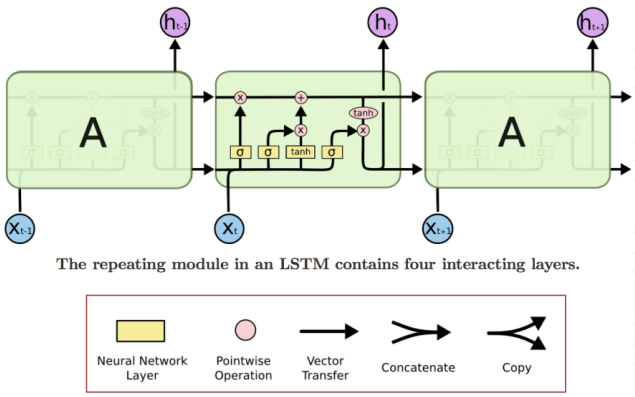

# 总体结构图

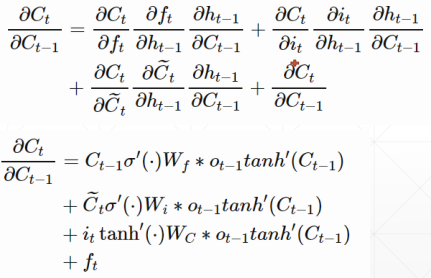

# 梯度信息

RNN 网络中会有梯度弥散的情况发生，根本原因就是 $W_R$ 的连乘，而 LSTM 就很好的解决了这个问题

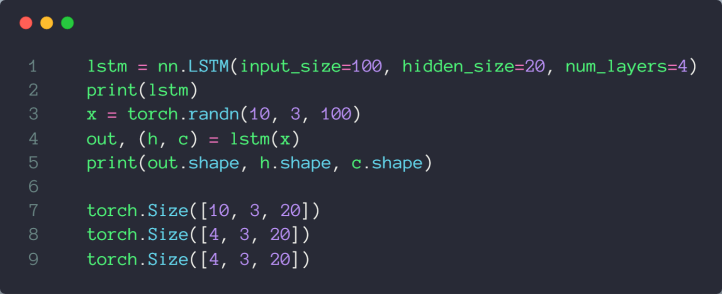

# 相关 API

参考：LSTM 使用.pdf

# 情感分类实战

参考：情感分类实战.pdf

	# -- coding: utf-8 --
	"""lstm

	Automatically generated by Colaboratory.

	Original file is located at
	https://colab.research.google.com/drive/1GX0Rqur8T45MSYhLU9MYWAbycfLH4-Fu
	"""

	!pip install torch
	!pip install torchtext
	!python -m spacy download en

	# K80 gpu for 12 hours
	import torch
	from torch import nn, optim
	from torchtext import data, datasets

	print('GPU:', torch.cuda.is_available())

	torch.manual_seed(123)

	TEXT = data.Field(tokenize='spacy')
	LABEL = data.LabelField(dtype=torch.float)
	train_data, test_data = datasets.IMDB.splits(TEXT, LABEL)

	print('len of train data:', len(train_data))
	print('len of test data:', len(test_data))

	print(train_data.examples[15].text)
	print(train_data.examples[15].label)

	# word2vec, glove
	TEXT.build_vocab(train_data, max_size=10000, vectors='glove.6B.100d')
	LABEL.build_vocab(train_data)


	batchsz = 30
	device = torch.device('cuda')
	train_iterator, test_iterator = data.BucketIterator.splits(
	(train_data, test_data),
	batch_size = batchsz,
	device=device
	)

	class RNN(nn.Module):

	def __init__(self, vocab_size, embedding_dim, hidden_dim):
	"""
	"""
	super(RNN, self).__init__()

	# [0-10001] => [100]
	self.embedding = nn.Embedding(vocab_size, embedding_dim)
	# [100] => [256]
	self.rnn = nn.LSTM(embedding_dim, hidden_dim, num_layers=2,
	bidirectional=True, dropout=0.5)
	# [256*2] => [1]
	self.fc = nn.Linear(hidden_dim*2, 1)
	self.dropout = nn.Dropout(0.5)


	def forward(self, x):
	"""
	x: [seq_len, b] vs [b, 3, 28, 28]
	"""
	# [seq, b, 1] => [seq, b, 100]
	embedding = self.dropout(self.embedding(x))

	# output: [seq, b, hid_dim*2]
	# hidden/h: [num_layers*2, b, hid_dim]
	# cell/c: [num_layers*2, b, hid_di]
	output, (hidden, cell) = self.rnn(embedding)

	# [num_layers2, b, hid_dim] => 2 of [b, hid_dim] => [b, hid_dim2]
	hidden = torch.cat([hidden[-2], hidden[-1]], dim=1)

	# [b, hid_dim*2] => [b, 1]
	hidden = self.dropout(hidden)
	out = self.fc(hidden)

	return out

	rnn = RNN(len(TEXT.vocab), 100, 256)

	pretrained_embedding = TEXT.vocab.vectors
	print('pretrained_embedding:', pretrained_embedding.shape)
	rnn.embedding.weight.data.copy_(pretrained_embedding)
	print('embedding layer inited.')

	optimizer = optim.Adam(rnn.parameters(), lr=1e-3)
	criteon = nn.BCEWithLogitsLoss().to(device)
	rnn.to(device)

	import numpy as np

	def binary_acc(preds, y):
	"""
	get accuracy
	"""
	preds = torch.round(torch.sigmoid(preds))
	correct = torch.eq(preds, y).float()
	acc = correct.sum() / len(correct)
	return acc

	def train(rnn, iterator, optimizer, criteon):

	avg_acc = []
	rnn.train()

	for i, batch in enumerate(iterator):

	# [seq, b] => [b, 1] => [b]
	pred = rnn(batch.text).squeeze(1)
	#
	loss = criteon(pred, batch.label)
	acc = binary_acc(pred, batch.label).item()
	avg_acc.append(acc)

	optimizer.zero_grad()
	loss.backward()
	optimizer.step()

	if i%10 == 0:
	print(i, acc)

	avg_acc = np.array(avg_acc).mean()
	print('avg acc:', avg_acc)


	def eval(rnn, iterator, criteon):

	avg_acc = []

	rnn.eval()

	with torch.no_grad():
	for batch in iterator:

	# [b, 1] => [b]
	pred = rnn(batch.text).squeeze(1)

	#
	loss = criteon(pred, batch.label)

	acc = binary_acc(pred, batch.label).item()
	avg_acc.append(acc)

	avg_acc = np.array(avg_acc).mean()

	print('>>test:', avg_acc)

	for epoch in range(10):

	eval(rnn, test_iterator, criteon)
	train(rnn, train_iterator, optimizer, criteon)
