# 环境

Python：3.6.5 OpenCV 4.1.2
C++：OpenCV 4.1.2
JS：OpenCV 4.5.0

环境搭建可参考：B 站视频

# 知识点

像素值统计

最小（min）
最大（max）
均值（mean）
标准方差（standard deviation）

# C++ 代码

#ifndef DAY10
#define DAY10

#include <opencv2/opencv.hpp>
#include <iostream>

using namespace std;
using namespace cv;

void day10() {

	// 读取一张灰度图像
	Mat src_gray = imread("E:\\_Image\\OpenCVTest\\girl.jpg", IMREAD_GRAYSCALE);
	if (src_gray.empty()) {
		cout << "could not load image.." << endl;
		return;
	}
	imshow("src_gray", src_gray);

	if (src_gray.type() == CV_8UC1) {
		double minVal = 0, maxVal = 0;
		Point minLoc, maxLoc;
		minMaxLoc(src_gray, &minVal, &maxVal, &minLoc, &maxLoc, Mat());

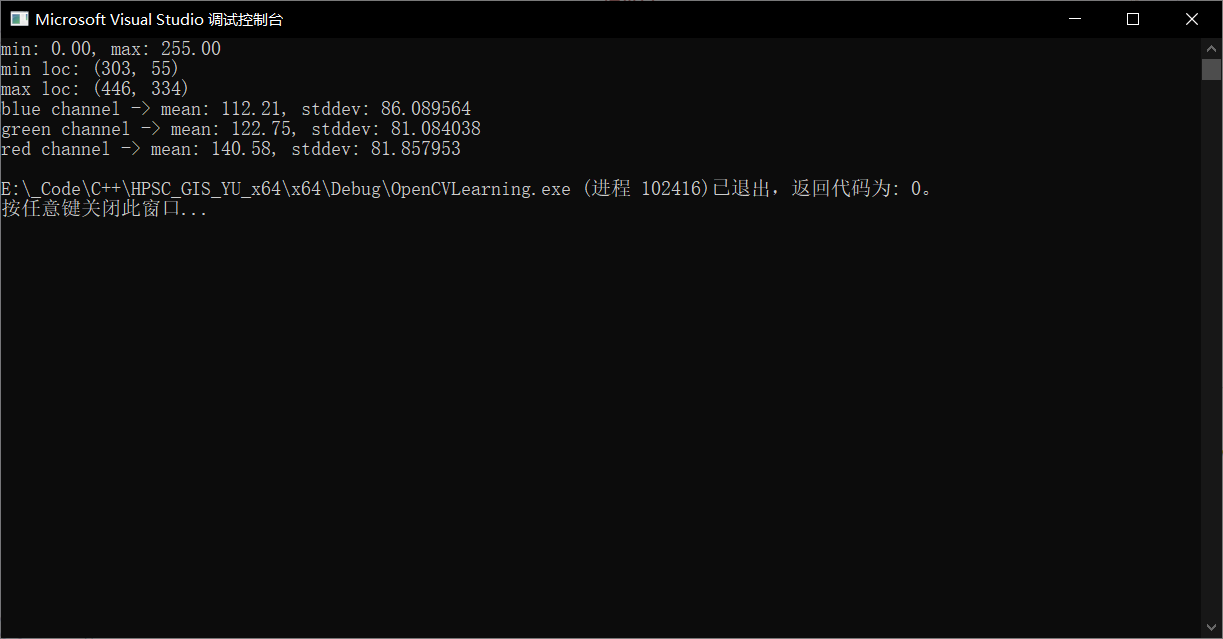

		printf("min: %.2f, max: %.2f\n", minVal, maxVal);
		printf("min loc: (%d, %d)\n", minLoc.x, minLoc.y);
		printf("max loc: (%d, %d)\n", maxLoc.x, maxLoc.y);
	}
	else {
		cout << "not gray image.." << endl;
	}

	// 读取一张三通道彩色图像，获得它的均值和方差
	Mat src_color = imread("E:\\_Image\\OpenCVTest\\girl.jpg");
	if (src_color.empty()) {
		cout << "could not load image.." << endl;
		return;
	}
	imshow("src_color", src_color);

	Mat mean, stddev;
	meanStdDev(src_color, mean, stddev);
	printf("blue channel -> mean: %.2f, stddev: %2f\n", mean.at<double>(0, 0), stddev.at<double>(0, 0));
	printf("green channel -> mean: %.2f, stddev: %2f\n", mean.at<double>(1, 0), stddev.at<double>(1, 0));
	printf("red channel -> mean: %.2f, stddev: %2f\n", mean.at<double>(2, 0), stddev.at<double>(2, 0));

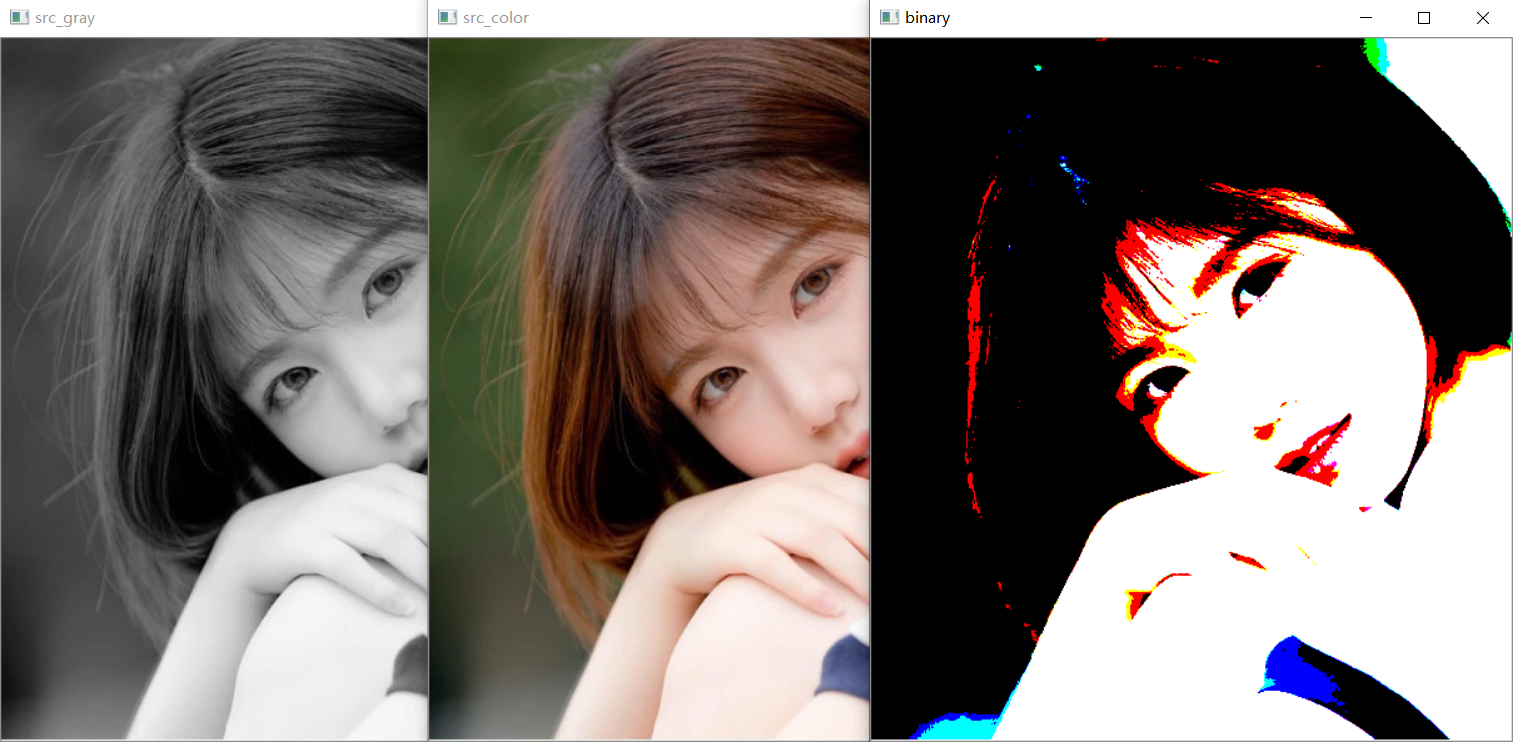

	// 根据图像的均值将彩色图像转换为二值图像
	for (int row = 0; row < src_color.rows; row++) {
		for (int col = 0; col < src_color.cols; col++) {
			Vec3b bgr = src_color.at<Vec3b>(row, col);
			bgr[0] = bgr[0] < mean.at<double>(0, 0) ? 0 : 255;
			bgr[1] = bgr[1] < mean.at<double>(1, 0) ? 0 : 255;
			bgr[2] = bgr[2] < mean.at<double>(2, 0) ? 0 : 255;
			src_color.at<Vec3b>(row, col) = bgr;
		}
	}
	imshow("binary", src_color);

	waitKey(0);
}

#endif // !DAY10

# Python 代码

	import cv2 as cv
	import numpy as np

	# 查看版本
	print(cv.__version__)

	# 读取和显示图像
	src = cv.imread("E:/_Image/OpenCVTest/girl.jpg", cv.IMREAD_GRAYSCALE)
	cv.imshow("src", src)

	# 获取灰度图的极值及位置
	mmin, mmax, minLoc, maxLoc = cv.minMaxLoc(src)
	print("min: %.2f, max: %.2f" % (mmin, mmax))
	print("minLoc: ", minLoc)
	print("maxLoc: ", maxLoc)

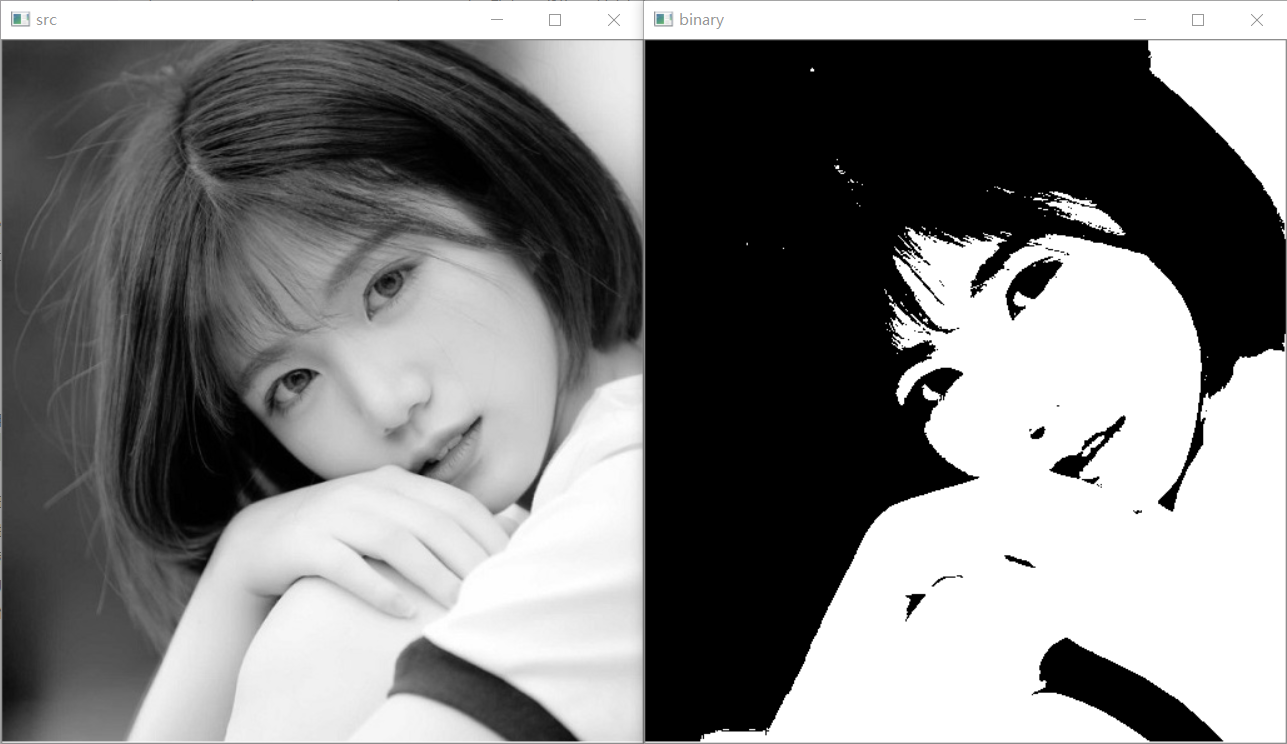

	# 获取灰度图的均值和方差
	means, stddev = cv.meanStdDev(src)
	print("means: %.2f, stddev: %.2f" % (means, stddev))
	src[np.where(src < means)] = 0
	src[np.where(src > means)] = 255
	cv.imshow("binary", src)

	## 彩色图像二值化
	src = cv.imread("E:/_Image/OpenCVTest/girl.jpg")
	cv.imshow("color", src)
	h, w, ch = src.shape
	means, stddev = cv.meanStdDev(src)
	print("blue channel -> means: %.2f, stddev: %.2f" % (means[0], stddev[0]))
	print("green channel -> means: %.2f, stddev: %.2f" % (means[1], stddev[1]))
	print("red channel -> means: %.2f, stddev: %.2f" % (means[2], stddev[2]))
	print("h, w, ch", h, w, ch)
	for row in range(h):
	for col in range(w):
	b, g, r = src[row, col]
	b = 0 if b < means[0] else 255
	g = 0 if g < means[1] else 255
	r = 0 if r < means[2] else 255
	src[row, col] = [b, g, r]
	cv.imshow("color_binary", src)

	# 等待键盘输入，释放内存
	cv.waitKey()
	cv.destroyAllWindows()

# JS 代码

	<template>
	<div>
	<p>图像像素值统计</p>
	<p id="status">OpenCV.js is loading...</p>
	<div class="inputoutput">
	<img id="imageSrc" src="imgs/girl.jpg" />
	</div>
	<div class="inputoutput">
	<canvas id="canvasOutput"></canvas>
	<div class="caption">canvasOutput</div>
	</div>
	</div>
	</template>

	<script>
	export default {
	name: "day10",
	mounted() {
	this.init();
	},
	destoryed() {},
	data() {
	return {
	mats: [],
	};
	},
	methods: {
	init() {
	setTimeout(() => {
	if (window.cv) {
	this.onOpenCvReady(window.cv);
	} else {
	this.init();
	}
	}, 500);
	},
	onOpenCvReady(cv) {
	document.getElementById("status").innerHTML = "OpenCV.js is ready.";

	// 官方文档链接：

	// 读取图像
	let src = this.createMat(cv, 1, { name: "imageSrc" });

	// 转化到 gray 色彩空间
	let gray = this.createMat(cv, 2);
	cv.cvtColor(src, gray, cv.COLOR_RGBA2GRAY);

	// 计算灰度图的极值和位置
	// 和 C++，Python 程序运行的结果不一致，感到很奇怪
	if (gray.type() === cv.CV_8UC1) {
	let ret = cv.minMaxLoc(gray);
	console.log(ret);
	}

	// 计算彩色图的均值和方差
	let bgr = this.createMat(cv, 2);
	cv.cvtColor(src, bgr, cv.COLOR_RGBA2BGR);
	let means = this.createMat(cv, 2);
	let stddev = this.createMat(cv, 2);
	cv.meanStdDev(bgr, means, stddev);
	// this.showImgInfo(means)
	// this.showImgInfo(stddev)
	// 和 C++，Python 程序运行的结果不一致，感到很奇怪
	console.log(`blue channel -> mean: ${means.ucharAt(0, 0)}, stddev: ${stddev.ucharAt(0, 0)}`);
	console.log(`green channel -> mean: ${means.ucharAt(1, 0)}, stddev: ${stddev.ucharAt(1, 0)}`);
	console.log(`red channel -> mean: ${means.ucharAt(2, 0)}, stddev: ${stddev.ucharAt(2, 0)}`);

	// 显示图像
	cv.imshow("canvasOutput", gray);

	// 销毁所有 mat
	this.destoryAllMats();
	},
	createMat(cv, type, ops) {
	switch (type) {
	case 1:
	if (ops && ops.name) {
	let mat = cv.imread(ops.name);
	this.mats.push(mat);
	return mat;
	}
	break;
	case 2: {
	let mat = new cv.Mat();
	this.mats.push(mat);
	return mat;
	}
	case 3:
	if (ops && ops.rows && ops.cols && ops.type && ops.initValue) {
	let mat = new cv.Mat(ops.rows, ops.cols, ops.type, ops.initValue);
	this.mats.push(mat);
	return mat;
	}
	break;
	default:
	break;
	}
	},
	showImgInfo(src) {
	console.log("img size :", src.size());
	console.log("img type :", src.type());
	console.log("img cols :", src.cols);
	console.log("img rows :", src.rows);
	console.log("img depth:", src.depth());
	console.log("img channels:", src.channels());
	},
	destoryAllMats() {
	let i = 0;
	this.mats.forEach((item) => {
	item.delete();
	i++;
	});
	console.log("销毁图象数：", i);
	},
	},
	};
	</script>

	<style lang="scss" scoped>
	</style>
